Modular Design Bench Comú Cóncavo Izquierda ®

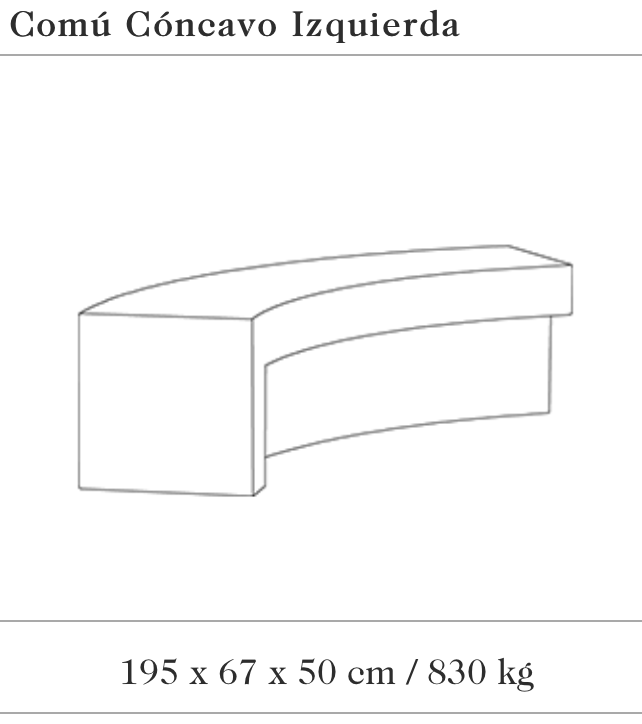

Design : Vora Arquitectura - 195 x 67 x 50cm - weight: 830 kg. - cast concrete with natural stone granulates - Escofet standard colour chart - acid-etched and waterproofed - anchorage in the pavement with threaded bolts
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched, Acid-Etched |
| Anchorage: in the pavement |
Comú Cóncavo Izquierda – Curved Left-End Element for Dynamic Seating Arrangements
The Comú Cóncavo Izquierda is a curved left-end element designed for use in modular seating setups. Its concave shape provides an elegant conclusion to curved configurations, making it ideal for urban and semi-public spaces such as parks, plazas, and promenades.
High-Quality Materials and Finish
Made from dry-mix concrete, the Comú Cóncavo Izquierda offers excellent durability and resistance to weather, wear, and heavy use. Its etched and water-repellent finish ensures its aesthetic and functional properties are preserved for years.
Flexible Configuration and Design Freedom
Measuring 195 cm in length, 67 cm in width, 50 cm in height, and weighing 830 kg, the Comú Cóncavo Izquierda is perfect for combining with other modular elements like the Comú Cóncavo Central. This enables dynamic, customized setups to suit any space.
Optional Comfort Features
The Comú Cóncavo Izquierda can be equipped with optional backrests and armrests, made from galvanized and silver-coated steel. These accessories add extra comfort and make the bench more accessible to a diverse range of users.
Cast concrete with natural stone aggregates - finish : acid-etched and waterproofed
2 anchorage bolts M16 x 140

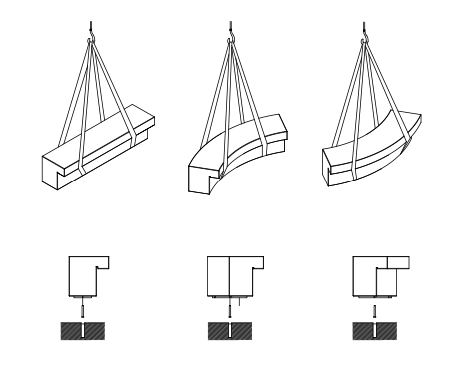

Stable Installation and Anchoring
The Comú Cóncavo Izquierda comes with pre-installed anchor points for secure installation. It is firmly fixed using two M16 x 140 mm screws, placed in Ø40 x 180 mm holes filled with epoxy resin or mortar. This ensures durable and stable anchoring.
Seamless Integration into Modular Design
As a left-end element in curved configurations, the Comú Cóncavo Izquierda connects seamlessly with other modules, such as straight and hollow elements. This gives designers the freedom to create unique and functional setups.
Low Maintenance and Weather-Resistant
Thanks to its high-quality materials and water-repellent finish, the Comú Cóncavo Izquierda requires minimal maintenance. It is resistant to weather and heavy use, making it ideal for busy public spaces.
