Design : Vora Arquitectura - Dimensions : 195 x 48 / 67 x 50 (50) cm - Radius : R147 / R195 - Weight : 815 kg. - Material : Reinforced cast concrete with natural stone aggregates - Finish : acid-etched and waterproofed - Colour : Standard Escofet Colour card - Installation : anchorage in the pavement.
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched |
| Anchorage: in the pavement |
Voor architecten en bestekschrijvers stellen wij bestekteksten ter beschikking die rechtstreeks in een lastenboek kunnen worden opgenomen.
De aanvraag vertrekt vanuit de productfamilie, zodat de juiste modellen eenvoudig geselecteerd kunnen worden.
Bestektekst opvragenDe duurzaamheidsinformatie wordt afgestemd op de leverancier, de gebruikte materialen en de beschikbare documentatie bij deze productfamilie.
Dit blok verwijst naar aanvullende leveranciersinformatie zodra de familiepagina inhoudelijk is gevalideerd.
Leveranciersinformatie
Design Bench Comú Recto Individual ®
Design modulair zitelement Comú Concavo Central®
Modulair design bench Comú Recto Derecha ®
Modular Design Bench Comú Convexo Individual®
Modular Design Bench Comú Cóncavo Derecha ®
Modular Design Bench Comú Cóncavo Izquierda ®
Modular design Bench Comú Convexo Derecha ®
Modular design bench Comú Recto Central ®
Modular design bench Comú Recto Izquierda ®
Hier komen verwijzingen naar de productfamiliepagina, relevante kennisartikelen en aanvullende bronnen die helpen bij de keuze van het juiste model.
Bronnen bekijkenHier worden projecten en referenties verzameld waarin dit productmodel of de bredere productfamilie in een vergelijkbare context wordt toegepast.
Projecten bekijkenBij elk productmodel verzamelen we de productfiches, technische tekeningen, installatie- of montagebestanden en CAD-tekeningen op een vaste plaats.
Sommige documenten zullen in een volgende fase rechtstreeks beschikbaar worden voor download. Deze functionaliteit is voorlopig nog in ontwikkeling.
Design Landscape element Islero ®
Design Landscape element Lungo Mare® - Module A
Design Landscape element Lungo Mare® - Module B
Design Landscape element Lungo Mare® - Module C
Design Landscape element Petra L®
Design Landscape element Petra S®
Design Landscape element Petra XS®
Design bench 108 Banca ©
Design bench ARO Curvo ®
Design bench ARO Recto ©
Design bench Abril®
Design bench Alpine Banca 175 Pino ®
The Comú Cóncavo Central is a modular concave element designed for dynamic and flexible seating setups. Its unique hollow shape enables the creation of complex, organic configurations in urban and semi-public spaces.
Constructed from dry-mix concrete, the Comú Cóncavo Central offers exceptional resistance to wear, weather, and heavy use. Its etched and water-repellent finish ensures longevity even in high-traffic public environments.

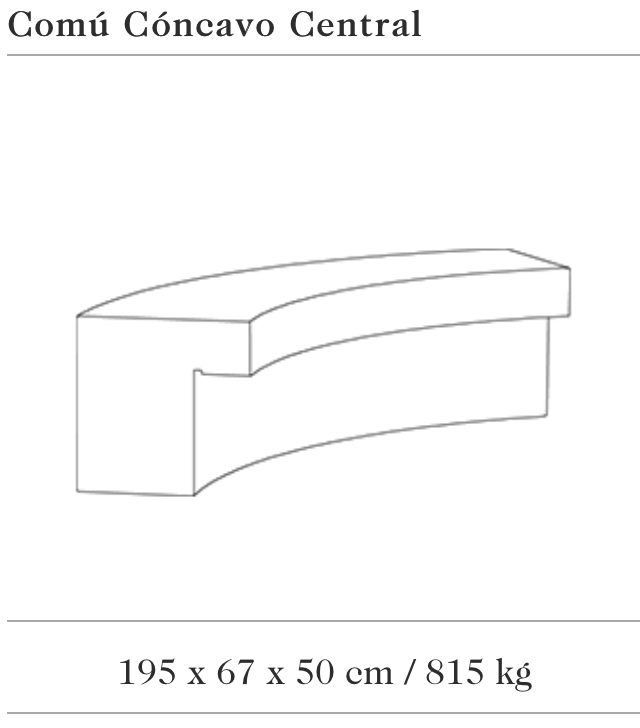

Measuring 195 x 67 x 50 cm and weighing 815 kg, the Comú Cóncavo Central can be easily combined with other modules, such as straight or convex elements. This makes it an ideal choice for designers seeking aesthetic and functional versatility.
The Comú Cóncavo Central offers optional integrated LED lighting (8W/m, 6000K, IP67) and accessories such as backrests and armrests for added comfort and usability.
Cast concrete with natural stone aggregates - finish : acid-etched and waterproofed
2 anchorage bolts M16 x 140

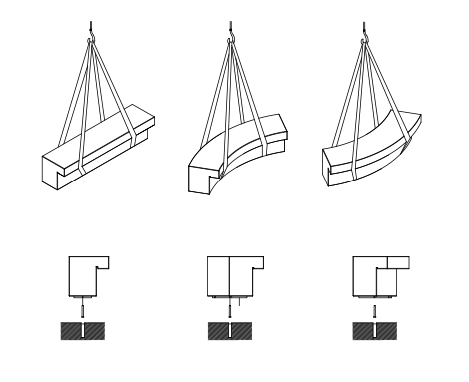

The Comú Cóncavo Central comes with pre-installed anchor points for stable and secure installation. It is firmly anchored using two M16 x 140 mm screws, inserted into Ø40 x 180 mm holes filled with epoxy resin or mortar.
With its concave design, the Comú Cóncavo Central integrates easily into curved or linear seating arrangements. This flexibility makes it an excellent choice for parks, plazas, and other public spaces.
High-quality concrete and a water-repellent finish minimize maintenance requirements. This ensures that the Comú Cóncavo Central retains its aesthetic and functional qualities for many years.
Discover in the Escofet Modulars 2025 brochure how this product fits into a modular system that makes public spaces more inclusive, green and future-ready.
Explore examples of seating landscapes that combine comfort, context and circular aesthetics.
Explore how modular seating helps reduce hard surfaces, boost shade, biodiversity and social contact – with clear design logic and creative spatial layouts..
Read our article on modular elements, their potential applications and key design opportunities.
See how this product has been applied in a project, as part of a seating landscape, integrated into existing space, with focus on comfort, context and circular design.
Combining elements gives insight into what’s possible on site.
