Design: Antoni Roselló - Dimensions: 98 x 98 x 2 cm - Weight: 84 kg. - Material: grate in nodular cast iron with a shot-blasted finish, frame in S235 JR hot-dip galvanised steel - Finish : grate without post-treatment, frame galvanised - Colours : no paint colour available - Installation : grate in the frame on top of foundation.
| Brand: Urbidermis by Santa & Cole |
| Material type 1: Cast iron |
| Material type 2: Steel |
| Anchorage: below ground level on foundations |
For architects and specification writers we provide specification texts that can be incorporated directly into a tender document.
The request is based on the product family, so that the right models can be selected easily.
Request specification textThe sustainability information is aligned with the supplier, the materials used and the available documentation for this product family.
This section will link to additional supplier information once the family page content has been validated.
Supplier informationNo other models published in this product family yet.
Here you will find links to the product family page, relevant knowledge articles and additional resources to help you choose the right model.
Browse resourcesHere we gather projects and references in which this product model or the broader product family has been applied in a comparable context.
Browse projectsFor each product model we collect the product sheets, technical drawings, installation or assembly files and CAD drawings in one place.
Some documents will become available for direct download in a later phase. This functionality is currently in development.
Design tree gate Horizont Square 150 ©
Design tree grate + 180 ©
Design tree grate Agal 150 ©
Design tree grate Aliados 120 ©
Design tree grate Aliados 200 ©
Design tree grate Alta C 150 ©
Design tree grate Alta Q 150 ©
Design tree grate Criva C 150 ©
Design tree grate Criva Q 150 ©
Design tree grate GG Rectangular 100/120 ©
Design tree grate GG Rectangular 150/100 ©
Design tree grate GG Square 100 ©

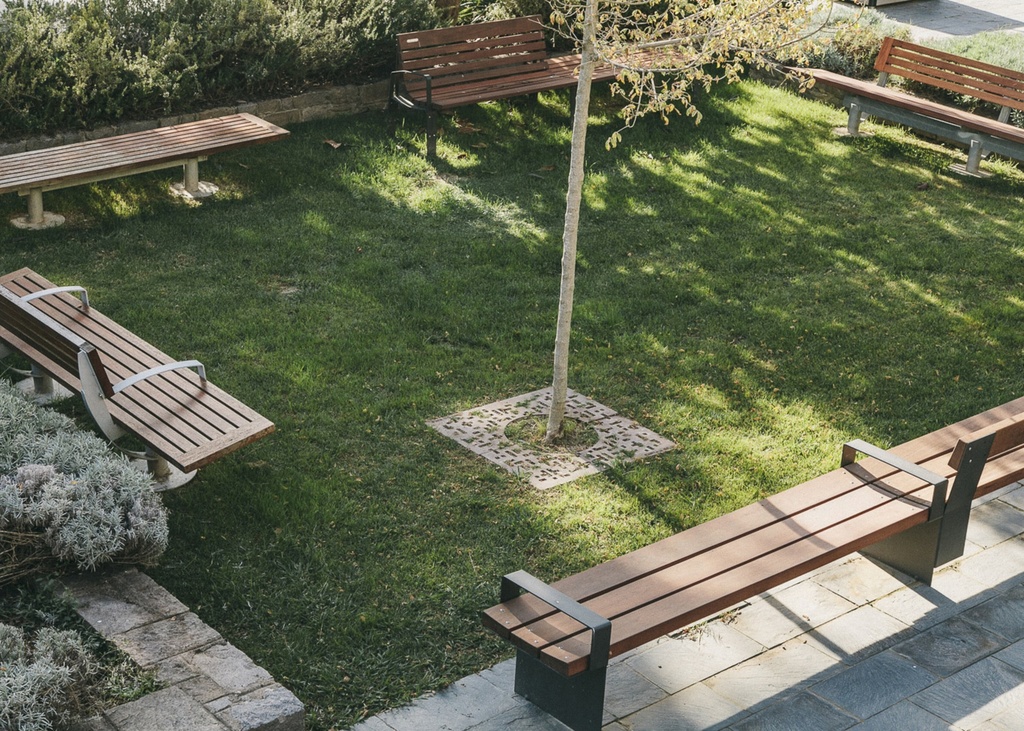

The Mondrian tree grate, designed by Antoni Roselló, is an iconic element of urban greening. With its sleek geometric pattern and sturdy construction, this grate combines aesthetic appeal with functional protection. Ideal for use in plazas, pedestrian zones, and parks, it safeguards young trees in high-traffic public areas without hindering their natural growth.
This tree grate is made of ductile cast iron with a natural shot-blasted finish and no additional treatment. It is supported by a hot-dip galvanized steel frame (S235 JR), making it highly resistant to corrosion—even in coastal regions. As a result, the Mondrian grate is perfectly suited for long-term outdoor use in a wide range of climates.
The Mondrian tree grate comes in two formats, each thoughtfully engineered for different urban contexts. The smaller version, Mondrian 100, measures 98 by 98 centimeters and features a central tree opening of 50 centimeters. It consists of two separate parts. The larger version, Mondrian 150, measures 148 by 148 centimeters with a 70-centimeter tree opening, divided into three segments. Both models adapt seamlessly to varying tree sizes and spatial configurations, while their geometric grid pattern provides a sense of uniformity and visual harmony in the streetscape.
The Mondrian tree grate requires no maintenance and complies with key international standards such as EN-ISO 146 and UNE-EN 124. Thanks to its high impact resistance and corrosion protection, this product is a reliable solution for public space designers who prioritize durable urban furniture.
The installation of the Mondrian tree grate begins with positioning the hot-dip galvanized steel frame on a prepared surface. A mortar bed is laid, into which the frame is pressed firmly to ensure that its upper edge is perfectly level with the surrounding paving. This ensures seamless integration into the urban environment and helps prevent tripping hazards or long-term subsidence.
Once the mortar bed has cured and the frame is securely set, the cast iron grate segments can be installed. The Mondrian 100 model includes two segments, while the Mondrian 150 is composed of three. These components are safely fixed into the frame using the provided hardware. Thanks to the well-considered design and clear assembly instructions, installation is straightforward and does not require specialized tools or heavy equipment.
