Design : SCOB arquitectes - Dimensions : ⌀ 60 x 45cm - Weight : 224kg. - Material : Reinforced cast concrete with natural stone granulates - Finish : Acid-etched and waterproofed - Colour : Standard Escofet colour chart - with integrated LED lighting - Installation : Anchoring in the paving
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched |
| Anchorage: in the pavement |
For architects and specification writers we provide specification texts that can be incorporated directly into a tender document.
The request is based on the product family, so that the right models can be selected easily.
Request specification textThe sustainability information is aligned with the supplier, the materials used and the available documentation for this product family.
This section will link to additional supplier information once the family page content has been validated.
Supplier information
Design element SOC 120 LED ®
Design element SOC 120 ®
Design element SOC 60®
Design element SOC 90 LED ®
Design element SOC 90 ®
Here you will find links to the product family page, relevant knowledge articles and additional resources to help you choose the right model.
Browse resourcesHere we gather projects and references in which this product model or the broader product family has been applied in a comparable context.
Browse projectsFor each product model we collect the product sheets, technical drawings, installation or assembly files and CAD drawings in one place.
Some documents will become available for direct download in a later phase. This functionality is currently in development.
Anti-parking rail - retractable 6m
Design KM.0 Banca ®
Design Valla Como ®
Design Valla Sagrera ®
Design Bench Comú Recto Individual ®
Design Chair Odos Taburete ® (acid-etched)
Design Chair Odos Taburete ® (soft polished)
Design Landscape element Lungo Mare® - Module C
Design Landscape element Petra L®
Design Landscape element Petra S®
Design Landscape element Petra XS®
Design Parking stopper ARO Límite ©

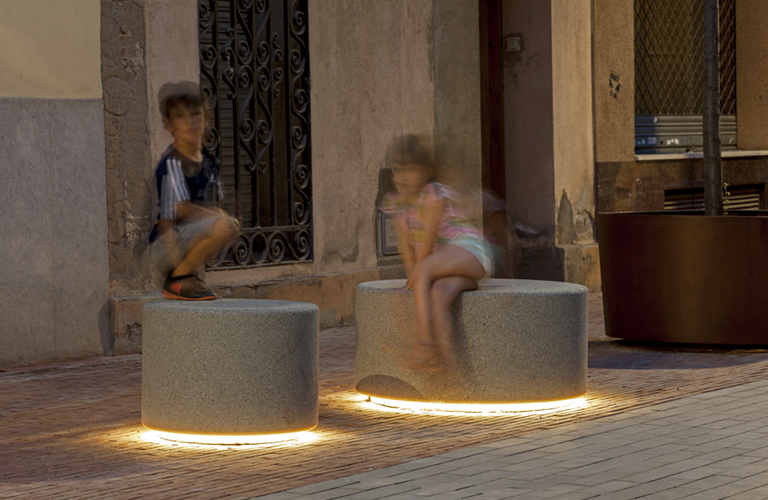

The SOC 60 LED combines stylish design with practical lighting, perfect for urban and municipal spaces. With a diameter of 60 cm and integrated LED lighting around the base, it creates a striking floating effect in the evening.
Made of water-repellent concrete and available in various colors, the SOC 60 LED offers a low-maintenance and vandal-resistant design. The energy-efficient LED lighting (3000K or 6000K) is powered by an IP67-rated driver, suitable for various weather conditions.
This model combines seating comfort with decorative lighting, ideal for parks, squares, and pedestrian zones. It enhances safety while creating a modern ambiance.
The SOC 60 LED delivers a sustainable solution, blending aesthetics and energy efficiency with a focus on functionality and visual impact in urban designs.
3 stud bolts M12 x140
The SOC 60 LED requires a flat surface and is installed using lifting straps to prevent damage. The furniture is firmly anchored with three M12 bolts, with drilled and filled holes in the surface ensuring stability.
For the LED lighting, the integrated driver connects to a 24V circuit, protected from moisture and dirt. After installation, the LED strip functionality should be checked. Periodic inspection of the concrete and lighting ensures long-lasting optimal condition.
