Design : Escofet_Lab - Dimensions : 220 x 90 x 75 cm - Weight : 378 kg. - Material : Ultra High Strength Concrete (UHPC) with the table top in Teak slats (Ship's deck look with joints seamed up in black) - Finish : acid-etched and waterproofed - Colour : Standard Escofet Colour Card - Installation : Anchoring in the pavement or in an underlying foundation
| Brand: Escofet 1886 |
| Material type 1: UHPC |
| Material type 2: Teak Wood |
| Finish: Acid-Etched |
| Anchorage: in the pavement |
For architects and specification writers we provide specification texts that can be incorporated directly into a tender document.
The request is based on the product family, so that the right models can be selected easily.
Request specification textThe sustainability information is aligned with the supplier, the materials used and the available documentation for this product family.
This section will link to additional supplier information once the family page content has been validated.
Supplier informationHere you will find links to the product family page, relevant knowledge articles and additional resources to help you choose the right model.
Browse resourcesHere we gather projects and references in which this product model or the broader product family has been applied in a comparable context.
Browse projectsFor each product model we collect the product sheets, technical drawings, installation or assembly files and CAD drawings in one place.
Some documents will become available for direct download in a later phase. This functionality is currently in development.
Design Chair Odos Taburete ® (acid-etched)
Design Picknick Lasai Conjunto Picnic ®
Design Picnic table Tramet 250®
Design Table Bancal - Double module
Design Table Odos Mesa ® (soft polished)
Design Table Odos Mesita ® (acid-etched)
Design Table Odos Mesita ® (soft polished)
Design Tafel Concret Mesa ®
Design Tafel Prat Mesa ECO Ajedrez ®
Design Tafel Prat Mesa ECO ®
Design Tafel Prat Mesa ®
Design Tafel Prat Mini Mesa ECO ®

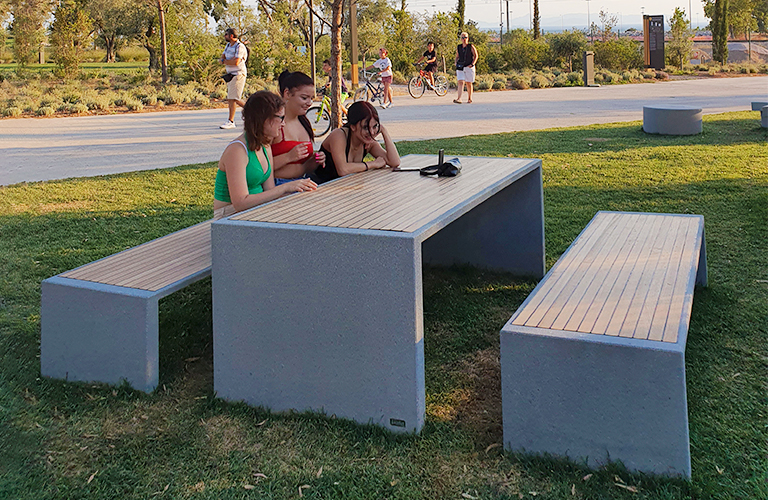

The Marina Mesa is a 220 cm table designed to encourage social interaction and togetherness in public spaces. With its timeless design and durable materials, this table serves as an inviting element in various urban and natural settings. When combined with the Marina 220 (Banca) and Marina Taburete, it forms a complete picnic setup, accommodating a wide range of users, from families to groups of friends.
The Marina Mesa plays a key role in promoting accessibility and inclusion. Thanks to its flexible configurations, setups can be created to accommodate individuals with disabilities. The design ensures that wheelchair users can comfortably access the table, contributing to a public space that is welcoming to everyone. With ample seating and room for movement, the Marina Mesa exemplifies functional and inclusive design.
The table is constructed from UHPC-Slimconcrete, a material renowned for its strength and resistance to wear. This makes the Marina Mesa suitable for heavy use and extreme weather conditions, such as freeze-thaw cycles. Its solid teakwood tabletop, finished with rubber-bitumen joints, adds a natural and durable touch that withstands the test of time.
Whether used in parks, plazas, or recreational areas, the Marina Mesa seamlessly integrates into a variety of environments. Thanks to its modular design, it can function as part of a larger setup or as a standalone picnic table. This versatility makes the Marina Mesa a valuable addition to any public space, balancing functionality and aesthetics.
4 anchorage bolts M12 x 140
Weighing 378 kg, the Marina Mesa requires precise handling during transport. Polyester slings or a forklift truck are recommended to move the table safely. Wooden planks spaced 1.4 meters apart should be used to provide additional protection.
The Marina Mesa can be installed freestanding or securely anchored. For anchoring, four M12 x 140 mm screws are used. Ø14 mm holes must be drilled into the ground and filled with resin or mortar to ensure a stable attachment. Once installed, the anchoring points are neatly finished to guarantee stability and a clean appearance.
