Design bench Hebi Curvo Flotante ®
Design Elías Torres y J.A. Martínez-Lapeña - dimensions: 306 x 108 x 45 (45) cm - Radius : R188 / 72° - Weight: 950 kg. - Material : Reinforced cast concrete with natural stone aggregates - Finish : acid-etched and waterproofed - Colour : Standard Escofet Colour Chart - Installation :
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched |
| Anchorage: in the pavement |
Dynamic and Floating Urban Furniture for Public Spaces

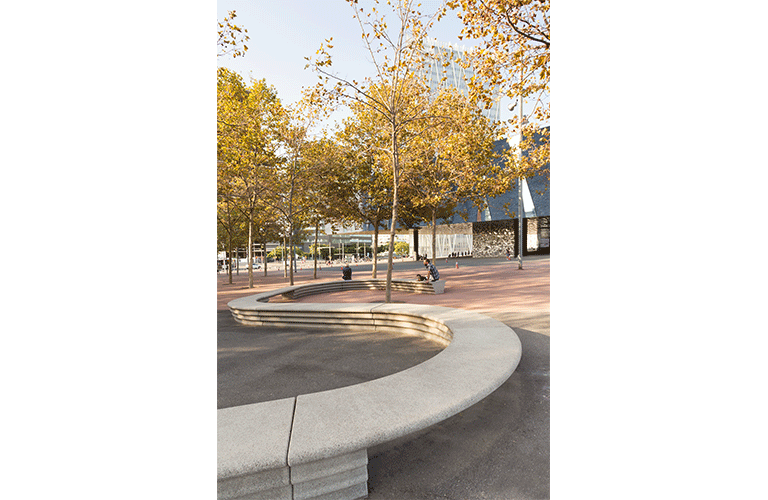

The Hebi Curvo Flotante combines a unique curved design with an elegant floating character. This model is designed to create a sense of movement and harmony in urban and natural environments, making it ideal for public spaces where flexibility and visual appeal are essential.
Features and Applications
With dimensions of 310 x 120 x 45 cm and a weight of 950 kg, the Hebi Curvo Flotante is a robust and versatile seating element. Made from dry-mix concrete reinforced with stainless steel components, it offers stability and durability. Its floating design creates a sense of lightness and openness, making it perfect for promenades, parks, and green zones.
Modularity and Integration
The Hebi Curvo Flotante is designed to seamlessly integrate with other models in the Hebi series. When combined with the straight lines of the Hebi Recto Flotante, it enhances the flowing aesthetics of the curved design, allowing for harmonious and dynamic patterns. Additionally, pairing it with the solid versions, such as the Hebi Recto Macizo and Hebi Curvo Macizo, creates a striking visual contrast between the light, floating design and the solid presence of the mass elements. This versatility enables configurations that add both functionality and aesthetic value to various public spaces.
Sustainability and Maintenance
With its waterproof and etched finish, the Hebi Curvo Flotante is resistant to heavy use and various weather conditions. Maintenance is minimal, making this model suitable for long-term urban projects where durability and low operational costs are essential.
Cast concrete with natural stone aggregates - finish : acid-etched and waterproofed
2 stud bolts M16 x 140
Handling and Transport

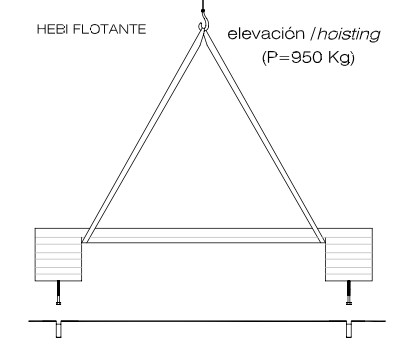

The Hebi Curvo Flotante, weighing 950 kg, requires professional transport. Use polyester lifting straps and suitable lifting equipment to safely move the product. Ensure the model remains stable and protected during transportation to prevent damage.
Assembly and Placement
The model must be carefully anchored to ensure optimal stability. The process begins by drilling Ø14 x 180 mm holes into the surface, such as concrete or pavement. These holes are then filled with a resin or mortar mixture to create a solid foundation. Stainless steel M16 bolts are carefully placed and firmly secured to prevent shifting. When integrating the Hebi Curvo Flotante with other models, such as the Hebi Recto Flotante or the solid variants, ensure that the fixings are applied consistently to achieve safe and stable integration.
Maintenance and Durability
Maintaining the Hebi Curvo Flotante is straightforward. Regular cleaning with water and a mild detergent is sufficient to keep the model in excellent condition. Periodically inspect the anchors and bolts, especially in high-traffic areas or under extreme weather conditions, to ensure the model's longevity and safety.
