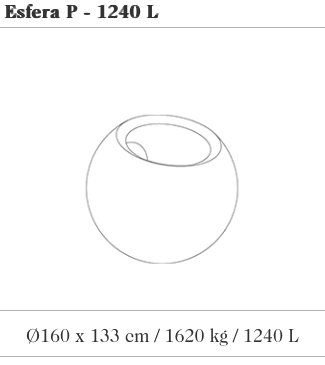

Design : Emiliana Design Studio - Dimensions: ø 160 x 133 cm - Capacity : 1.240 L. - Weight: 1.692 kg. - Cosed bottom - Material : armed cast concrete with natural stone granulates, Interior treated with a breathable and flexible coating for waterproofing - Finish : acid-etched and waterproofed - Colour : Escofet standard colour chart - Installation : Free-standing element
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched |
| Anchorage: freestanding |
Voor architecten en bestekschrijvers stellen wij bestekteksten ter beschikking die rechtstreeks in een lastenboek kunnen worden opgenomen.
De aanvraag vertrekt vanuit de productfamilie, zodat de juiste modellen eenvoudig geselecteerd kunnen worden.
Bestektekst opvragenDe duurzaamheidsinformatie wordt afgestemd op de leverancier, de gebruikte materialen en de beschikbare documentatie bij deze productfamilie.
Dit blok verwijst naar aanvullende leveranciersinformatie zodra de familiepagina inhoudelijk is gevalideerd.
Leveranciersinformatie
Design Planter Esfera G 2455L Jardinera ® Open
Design Planter Esfera G 2455L Tapa Jardinera ® Closed
Design Planter Esfera P 1240L Jardinera ® Open
Design planter Esfera S 290L Jardinera ®
Hier komen verwijzingen naar de productfamiliepagina, relevante kennisartikelen en aanvullende bronnen die helpen bij de keuze van het juiste model.
Bronnen bekijkenHier worden projecten en referenties verzameld waarin dit productmodel of de bredere productfamilie in een vergelijkbare context wordt toegepast.
Projecten bekijkenBij elk productmodel verzamelen we de productfiches, technische tekeningen, installatie- of montagebestanden en CAD-tekeningen op een vaste plaats.
Sommige documenten zullen in een volgende fase rechtstreeks beschikbaar worden voor download. Deze functionaliteit is voorlopig nog in ontwikkeling.
Design Planter Catherine Jardinera ® 1240L
Design Planter Hidrojardinera 560L ®
Design Planter Hidrojardinera 950L ® (SW)
Design Planter Otto
Design Planter Tram Jardinera 100 ®
Design Planter Tram Jardinera 200 ®
Design planter Box Jardinera Cuadrada 245L ®
Design planter Box Jardinera Cuadrada ECO 245L ®
Design planter Box Jardinera Rectangular 220L ®
Design planter Box Jardinera Rectangular ECO 220L ®
Design planter Cónica 450L ®
Design planter Cónica 650L ®

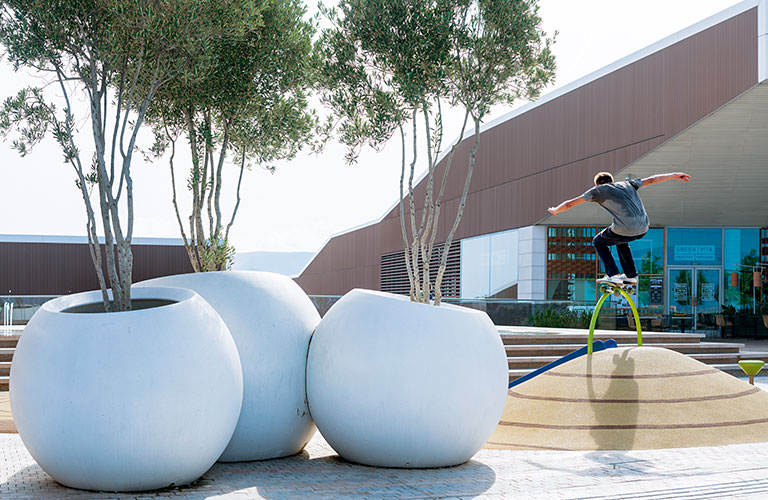

The Esfera P with a closed bottom offers an innovative and flexible solution for urban greening, even on paved surfaces such as plazas and sidewalks. This model from the Esfera collection is designed with a flat back, allowing it to fit seamlessly alongside other elements in the same series. With a generous capacity of 1240 liters, this robust planter accommodates medium-sized trees and larger shrubs without relying on the natural soil.
Unlike the open-bottom variant, this version features a closed base with integrated drainage holes. This ensures controlled water runoff and prevents excessive moisture buildup. As a result, the Esfera P is ideally suited for plazas, pedestrian zones, and other urban spaces where natural soil infiltration is not possible.
Like the other models in the collection, the Esfera P is made of high-quality cast concrete reinforced with stainless steel. Its etched and waterproof finish provides long-lasting protection against the elements, while multiple color options – such as grey, white, and beige – ensure seamless integration into any urban design.
The flat-back design allows multiple Esfera P units to be positioned closely together, making it ideal for creating green borders or structured arrangements. Combine this model with the Esfera S and Esfera G to create dynamic and adaptable green zones that meet the spatial needs of the city.
Cast concrete with natural stone aggregates - finish : acid-etched and waterproofed
The Esfera P with a closed bottom is specifically designed for urban environments with paved surfaces. The model is placed directly without anchoring and remains stable and secure due to its substantial weight (up to 1692 kg).

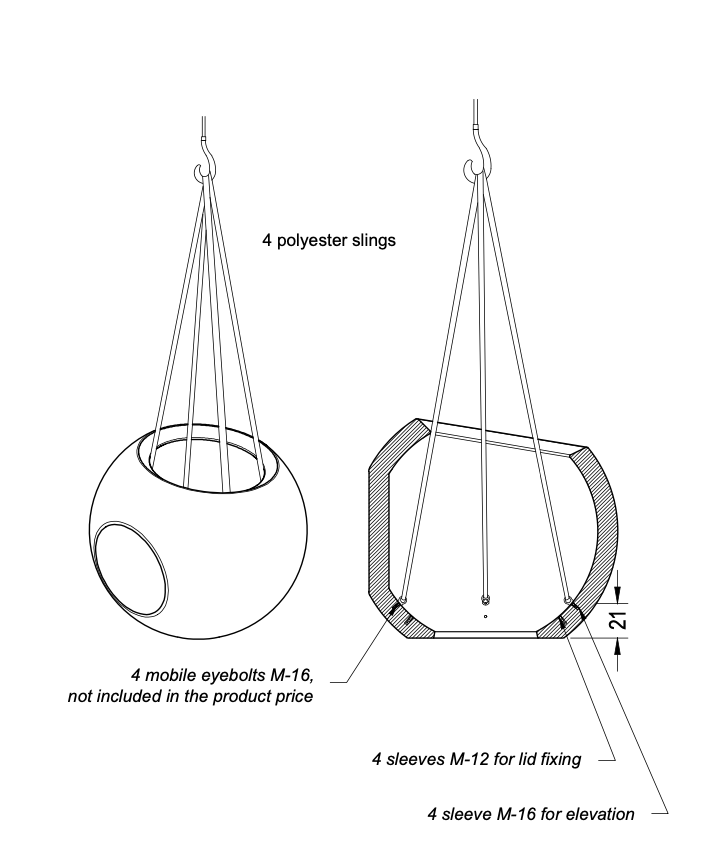

Transporting and placing the Esfera P requires the use of polyester slings and four lifting points for precise positioning. Its solid construction ensures a safe installation, even in high-traffic public spaces.
The closed bottom prevents uncontrolled water infiltration into the ground, while integrated drainage holes allow for efficient water runoff. This ensures that the substrate inside the planter remains healthy and suitable for optimal plant growth.
