Modular Design Bench Comú Convexo Izquierda ®

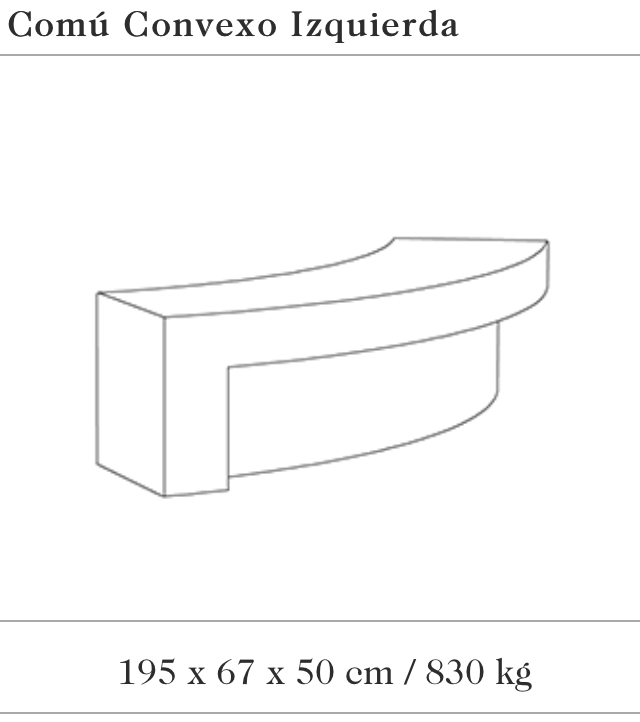

Design : Vora Arquitectura - Dimensions : 195 x 48 / 67 x 50 (50) cm - Radius : R147 / R195 - Weight : 830 kg. - Material : Reinforced cast concrete with natural stone aggregates - Finish : acid-etched and waterproofed - Colour : Standard Escofet Colour card - Installation : anchorage in the pavement.
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched |
| Anchorage: in the pavement |
Comú Convexo Izquierda – Curved Left-End Element for Dynamic Seating Arrangements
The Comú Convexo Izquierda is a curved left-end element specifically designed for modular seating configurations. With its flowing and minimalist design, this bench seamlessly connects with both straight and curved modules from the Comú series, creating a natural and aesthetic conclusion.
Durable Material and Premium Finish
Made from dry-mix concrete with an etched and water-repellent finish, the Comú Convexo Izquierda offers excellent resistance to wear, weather, and intensive use. Its durable materials ensure long-lasting aesthetic and functional properties in urban and semi-public spaces.
Flexibility in Design and Configurations
Measuring 195 x 67 x 50 cm and weighing 830 kg, the Comú Convexo Izquierda is perfect as a closing element in curved or linear seating arrangements. This model can easily be combined with other modules, such as the Comú Convexo Central or straight modules, to create unique and customized designs.
Optional Accessories for Enhanced Comfort
For an improved user experience, the Comú Convexo Izquierda can be equipped with armrests and backrests, made from galvanized and silver-coated steel. These additions enhance comfort and make the bench more accessible to a wide range of users.
Cast concrete with natural stone aggregates - finish : acid-etched and waterproofed
2 anchorage bolts M16 x 140
Stable Anchoring for Durable Installation

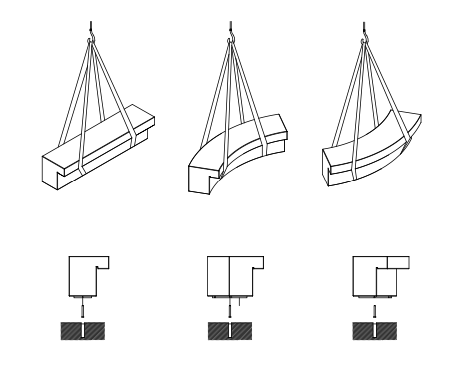

The Comú Convexo Izquierda is delivered with pre-installed anchor points for secure and stable placement. Installation is performed using two M16 x 140 mm screws, inserted into Ø40 x 180 mm holes filled with epoxy resin or mortar. This method ensures a robust fixation on various surfaces.
Seamless Integration into Modular Design
As a left-end element in curved or linear seating arrangements, the Comú Convexo Izquierda provides an aesthetic and functional conclusion. This model integrates effortlessly with other modules, allowing designers flexibility in creating unique urban seating solutions.
Low Maintenance and Long-Lasting
Made from high-quality concrete with an etched finish, the Comú Convexo Izquierda requires minimal maintenance and offers a long lifespan. This makes the bench ideal for heavily used public spaces.
