Modular design bench Comú Cóncavo Central ®
Design : Vora Arquitectura - Dimensions : 195 x 48 / 67 x 50 (50) cm - Radius : R147 / R195 - Weight : 815 kg. - Material : Reinforced cast concrete with natural stone aggregates - Finish : acid-etched and waterproofed - Colour : Standard Escofet Colour card - Installation : anchorage in the pavement.
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched |
| Anchorage: in the pavement |
Comú Cóncavo Central – Modular Concave Element for Dynamic Seating Arrangements
The Comú Cóncavo Central is a modular concave element designed for dynamic and flexible seating setups. Its unique hollow shape enables the creation of complex, organic configurations in urban and semi-public spaces.
Durable Materials for Long-Term Quality
Constructed from dry-mix concrete, the Comú Cóncavo Central offers exceptional resistance to wear, weather, and heavy use. Its etched and water-repellent finish ensures longevity even in high-traffic public environments.
Design Flexibility

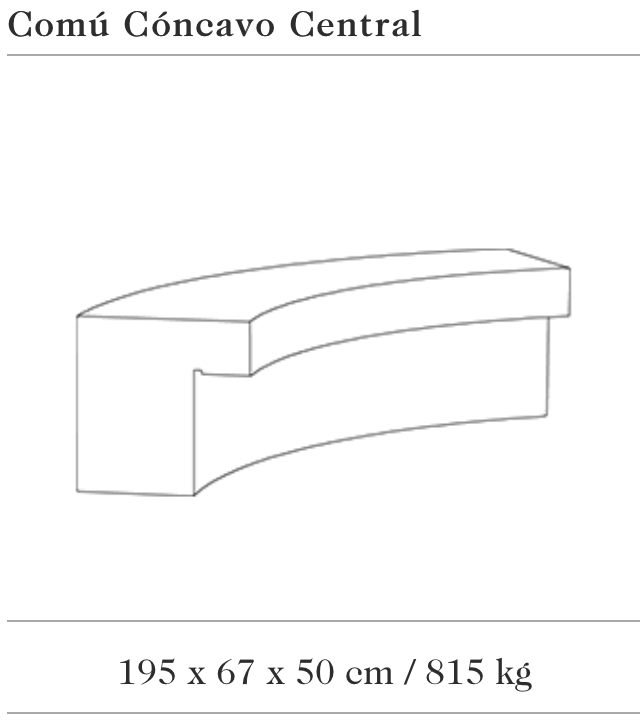

Measuring 195 x 67 x 50 cm and weighing 815 kg, the Comú Cóncavo Central can be easily combined with other modules, such as straight or convex elements. This makes it an ideal choice for designers seeking aesthetic and functional versatility.
Optional Lighting and Accessories
The Comú Cóncavo Central offers optional integrated LED lighting (8W/m, 6000K, IP67) and accessories such as backrests and armrests for added comfort and usability.
Cast concrete with natural stone aggregates - finish : acid-etched and waterproofed
2 anchorage bolts M16 x 140

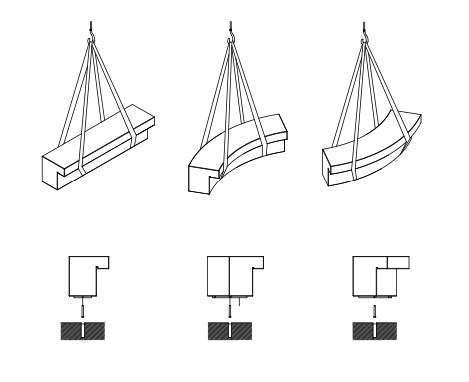

Simple Installation and Anchoring
The Comú Cóncavo Central comes with pre-installed anchor points for stable and secure installation. It is firmly anchored using two M16 x 140 mm screws, inserted into Ø40 x 180 mm holes filled with epoxy resin or mortar.
Seamless Integration into Modular Configurations
With its concave design, the Comú Cóncavo Central integrates easily into curved or linear seating arrangements. This flexibility makes it an excellent choice for parks, plazas, and other public spaces.
Low Maintenance and Long Lifespan
High-quality concrete and a water-repellent finish minimize maintenance requirements. This ensures that the Comú Cóncavo Central retains its aesthetic and functional qualities for many years.
