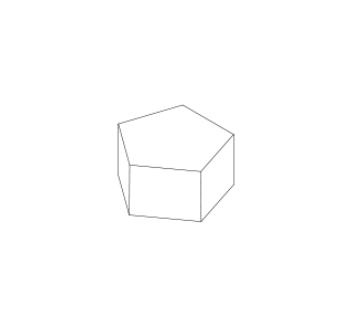

Design : Escofet_Lab - Dimensions : 81 x 76 x 45(45) cm - Weight : 450kg. - Material : Reinforced cast concrete with natural stone aggregates - Finish : Acid-etched and waterproofed - Colour : Standard Escofet Colour Card - Installation : free-standing element or with optional anchoring
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched |
| Anchorage: free standing - optional anchorage |
For architects and specification writers we provide specification texts that can be incorporated directly into a tender document.
The request is based on the product family, so that the right models can be selected easily.
Request specification textThe sustainability information is aligned with the supplier, the materials used and the available documentation for this product family.
This section will link to additional supplier information once the family page content has been validated.
Supplier information
Design bench Box 50 Cubo ®
Design bench Box Eco 100 ®
Design bench Box Eco 150 ®
Design bench Box Eco 200 ®
Design bench Box Eco 250 ®
Design bench Box Eco 50 Cubo ®
Design bench Box Eco Curvo ®
Design element Box 100®
Design element Box 150®
Design element Box 200 Teca®
Design element Box 200®
Design element Box 250®
Design element Box CURVE R150 ®
Design element Box NEXUS ECO ®
Design planter Box Jardinera Cuadrada 245L ®
Design planter Box Jardinera Cuadrada ECO 245L ®
Here you will find links to the product family page, relevant knowledge articles and additional resources to help you choose the right model.
Browse resourcesHere we gather projects and references in which this product model or the broader product family has been applied in a comparable context.
Browse projectsFor each product model we collect the product sheets, technical drawings, installation or assembly files and CAD drawings in one place.
Some documents will become available for direct download in a later phase. This functionality is currently in development.
Design Bench Comú Recto Individual ®
Design Landscape element Islero ®
Design Landscape element Lungo Mare® - Module A
Design Landscape element Lungo Mare® - Module B
Design Landscape element Lungo Mare® - Module C
Design bench Alpine Banca 175 Pino ®
Design bench Alpine Banca 240 Tropical ®
Design bench Alpine Banca Banco 175 Tropical ®
Design bench Alpine Banca Banco 240 Pino ®
Design bench Alpine Banca Doble 175 Tropical ®
Design bench Alpine Banca Doble 240 Pino ®
Design bench Alpine Banco 175 Tropical ®

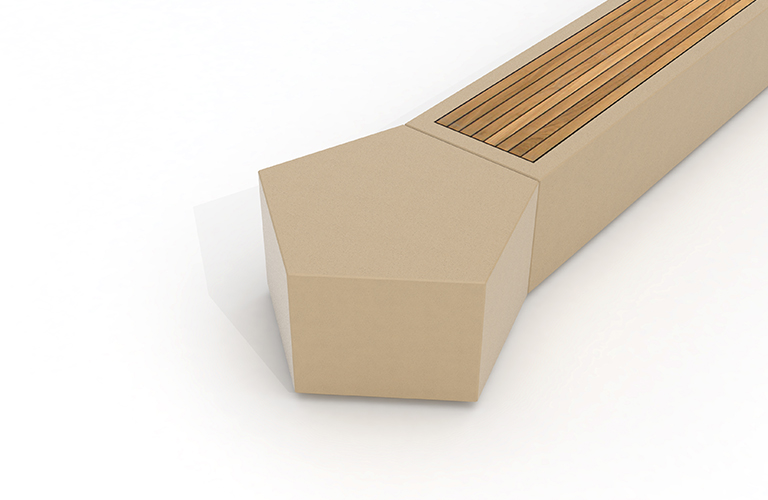

The Box Nexus is a pentagonal connector, designed as an essential part of the modular Boxland system. This element enables seamless connections between various Box modules, allowing you to create a wide variety of configurations. Thanks to its innovative geometry with 72° angles, it facilitates both simple and complex compositions, perfectly suited to modern public spaces such as squares, parks, and urban areas.
Made of cast concrete with natural stone aggregates, the Box Nexus offers a robust structure and a refined finish. These materials ensure not only impressive durability but also enhance the visual appeal of urban spaces. Its waterproof and etched finish makes it suitable for long-term use in diverse weather conditions.

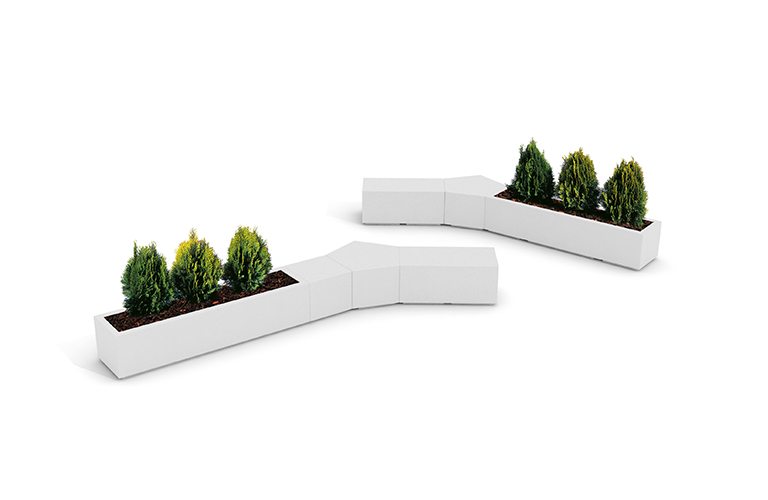

The versatility of the Box Nexus allows for dynamic setups that meet a variety of needs. Use it as a connecting element between benches or combine it with planters and radial elements for a harmonious design. This makes the Box Nexus ideal for urban projects that balance functionality and aesthetics.
The combination of high-quality materials and a smart design philosophy ensures that the Box Nexus requires minimal maintenance. Its solid construction withstands heavy loads and intensive use, essential for public spaces with high foot traffic.
Cast concrete with natural stone aggregates - finish : acid-etched and waterproofed
Optioneel : 2 tap bouten (DIN 931 M16 x 140mm)
Installing the Box Nexus requires careful planning to ensure its long-term stability and functionality. Designed with built-in fastening points, this urban element is ideal for secure anchoring, even in areas with high pedestrian activity. The placement process guarantees that the Box Nexus remains securely fixed while complementing its surroundings.
Before installation, the surface must be inspected and prepared to support the weight and dimensions of the Box Nexus. The concrete base is designed with integrated bolt recesses, allowing for strong connections using high-grade mortar or resin. This method prevents any shifting and significantly extends the durability of the installation.

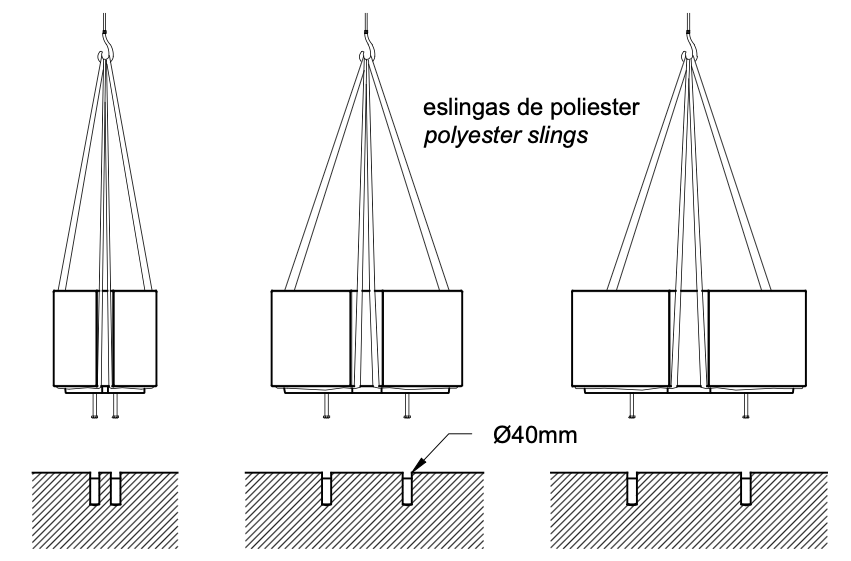

The Box Nexus includes features that simplify transportation and placement. Polyester lifting straps can be utilized to safely move the element, ensuring no damage occurs during handling. Once positioned, the structure is centered and sealed at the base for a seamless integration into its environment.
Thanks to its high-quality materials and etched finish, the Box Nexus requires no additional treatment after installation. Its water-repellent design minimizes dirt accumulation and ensures a pristine appearance over extended periods, making it ideal for busy urban settings.
Discover in the Escofet Modulars 2025 brochure how this product fits into a modular system that makes public spaces more inclusive, green and future-ready.
Explore examples of seating landscapes that combine comfort, context and circular aesthetics.
Explore how modular seating helps reduce hard surfaces, boost shade, biodiversity and social contact – with clear design logic and creative spatial layouts..
Read our article on modular elements, their potential applications and key design opportunities.
See how this product has been applied in a project, as part of a seating landscape, integrated into existing space, with focus on comfort, context and circular design.
Combining elements gives insight into what’s possible on site.
