Design: Francisco Providência - Dimensions: 118 x 60 x 86 cm - Material: sheet steel - Finish: painted - Colour: standard cast iron black or optional RAL colours - Fixing: to the paving

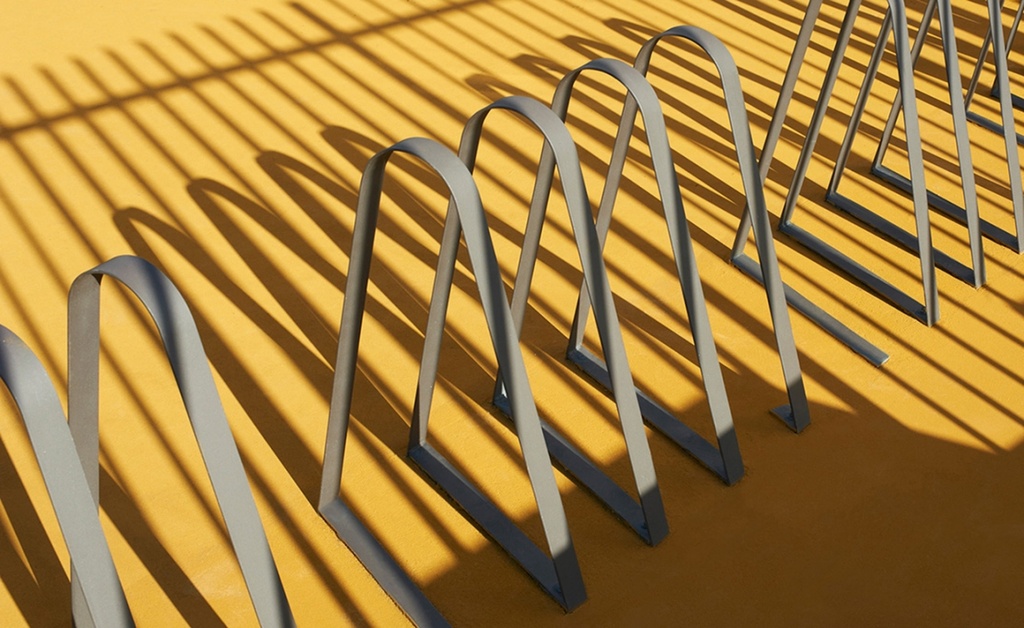

Steel bicycle parking module by Larus Design, designed by Francisco Providência, for four bicycles. The largest configuration in the Triângulo range features four triangular arches in a continuous steel profile with Enamel Forge finish. Suited to busy locations such as stations, school campuses and sports facilities.
| Brand: Larus Design |
| Material type 1: Steel |
| Finish: Painted |
| Anchorage: on the pavement |
For architects and specification writers we provide specification texts that can be incorporated directly into a tender document.
The request is based on the product family, so that the right models can be selected easily.
Request specification textThe sustainability information is aligned with the supplier, the materials used and the available documentation for this product family.
This section will link to additional supplier information once the family page content has been validated.
Supplier informationHere you will find links to the product family page, relevant knowledge articles and additional resources to help you choose the right model.
Browse resourcesHere we gather projects and references in which this product model or the broader product family has been applied in a comparable context.
Browse projectsFor each product model we collect the product sheets, technical drawings, installation or assembly files and CAD drawings in one place.
Some documents will become available for direct download in a later phase. This functionality is currently in development.
Design Bicycle Stand Sheffield
Design Bicycle stand Lock
Design Bike stand Key Ø57 ®
Design Bike stand Key Ø65 ®
Design Bikestand Raval®
Design bench and bicycle stand Hydra Bike ®
Design bicycle stand Bici-N ®
Design bicycle stand City 1600 ®
Design bicycle stand City 800 ®
Design bicycle stand Omega Bike
Design bicycle stand Sammy
Design bicycle stand Táctil
At busy cycle parking areas, near campus entrances or beside bus stops, capacity matters as much as appearance. The Larus Triângulo 4 modules is the largest configuration in the Triângulo series, accommodating four bicycles in a single continuous steel silhouette. As a bicycle rack, it stands out through the extended cadence of triangular arches that draws a recognisable line across the pavement or square.
At locations with high bicycle turnover, think of stations, sports complexes or large school campuses, the material must withstand years of daily wear. The steel structure with Enamel Forge finish and underlying metallisation layer provides that resilience. The forged texture of the coating conceals minor usage marks, so this cycle parking stand retains a well-kept appearance even after years of intensive use.
Francisco Providência designed the Triângulo as a continuously hot-pressed profile. With four modules, that continuous character is most pronounced: the rhythmic succession of arches creates a visual anchor point in the public realm. Each bicycle is held by its frame, ensuring stability and preventing damage to wheels. Where greater capacity is required, multiple Triângulo elements can be placed side by side to form longer arrangements that adapt to the available space.
Sufficient and well-designed cycle parking is a basic requirement for any active mobility policy. The Triângulo fits within the material and design vocabulary of Larus Design and can be combined with lighting elements or bollards from the same range, giving the entire edge of a square or cycle route a coherent character.
galvanised steel sheet and painted finish
Position the Triângulo 4 modules at the desired location and mark the fixing holes on the paving using the hole pattern from the technical data sheet. Remove the element and drill through the paving into the underlying concrete foundation.
Apply the chemical anchor in the drilled holes following the anchor manufacturer's instructions and insert the threaded rods. Allow the anchor to cure fully. Then position the Triângulo over the threaded rods and secure the element by tightening the nuts onto the rods. Check the stability of each arch afterwards. The joints around the fixing points can be sealed with a suitable pointing mortar to limit moisture infiltration.
