Design beacon Quake ®
Design : Enric Rodriguez - Dimensions : 45 x 54 x 50 cm - Weight : 240 kg. - Material : Cast concrete with natural stone granulates - Finish : Acid-etched and waterproofed - Colour : Standard Escofet colour chart - Installation : Anchoring on paving or on an underlying foundation
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched |
| Anchorage: in the pavement |
Light and boundary in one element

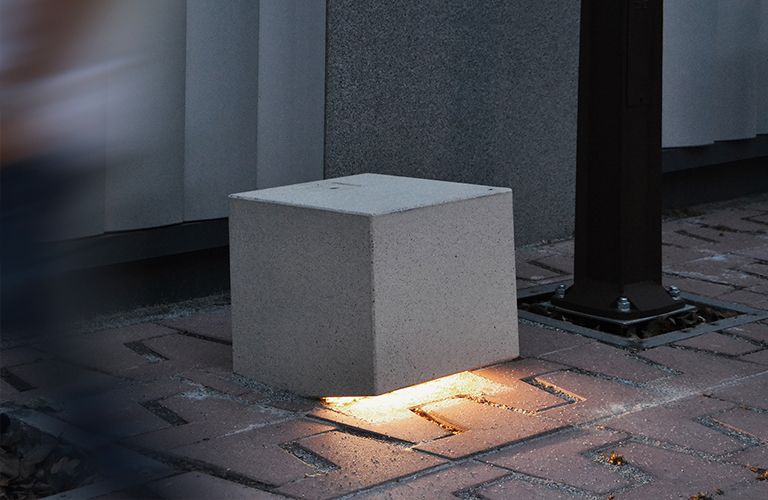

The Quake combines the functions of boundary marker, lighting and seating. Light escapes gently along its base, highlighting paths and zones without light pollution. On a square or campus, it creates an inviting atmosphere where safety and comfort go hand in hand.
Accessibility and safety after dark
The Quake improves accessibility in public spaces by guiding people during dark hours. Its soft ground-level light helps pedestrians find their way and reduces the sense of insecurity. On walkways, plazas and entrances, it creates an environment where people can move confidently.
Durability and visual quality
With its robust construction and long-lasting finish, the Quake meets the demands of busy urban environments. By day, it acts as a strong visual marker; by night, it transforms the space with a calm glow that enhances legibility.
Versatile use in urban projects
From building entrances to park paths or car-free zones, the Quake brings structure, light and atmosphere together in one element. Both functional and aesthetic, it offers designers flexibility to create accessible and enjoyable public spaces.
Imagine a city boulevard where the Quake not only lights the way, but also provides a sense of safety – a subtle invitation to move freely through the night.
Cast concrete with natural stone aggregates - finish : acid-etched and waterproofed
3 stud bolts M12 x 140

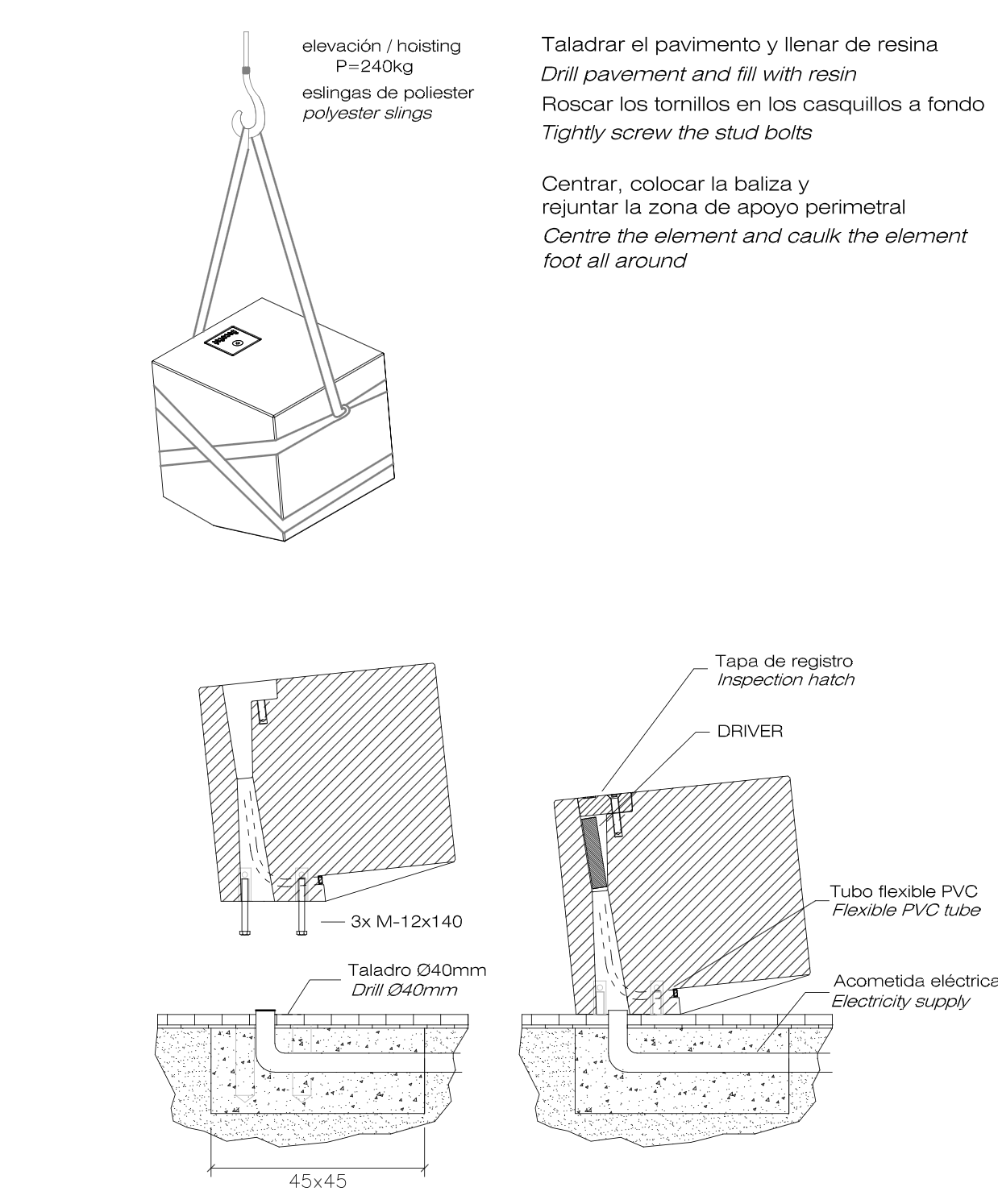

Installation guide
Select a stable, level surface and mark the correct positions of the Quake units. Ensure access to the electrical connection and orient the elements so the light shines effectively at ground level. Use lifting slings for safe handling.
The Quake is anchored to the paving or a footing. Electrical wiring is connected through an opening at the base. Once positioned, the base is sealed for stability and safety. In a row, equal distances and orientation ensure a calm appearance and consistent lighting.
