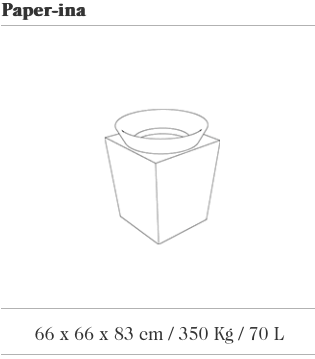

Design : Salvador Fàbregas - Dimensions : 66 x 66 x 83 cm - Capacity : 70 L - Weight : 350 kg. - Material : reinforced cast concrete with natural stone aggregates, opening in rotation moulded plastic, stainless steel ring for waste bag - Finish : acid-etched and waterproofed - Colour : Escofet standard colour card - Installation : freestanding with optional anchoring.
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Material type 2: Plastic |
| Finish: Acid-Etched |
| Anchorage: free standing - optional anchorage |
Voor architecten en bestekschrijvers stellen wij bestekteksten ter beschikking die rechtstreeks in een lastenboek kunnen worden opgenomen.
De aanvraag vertrekt vanuit de productfamilie, zodat de juiste modellen eenvoudig geselecteerd kunnen worden.
Bestektekst opvragenDe duurzaamheidsinformatie wordt afgestemd op de leverancier, de gebruikte materialen en de beschikbare documentatie bij deze productfamilie.
Dit blok verwijst naar aanvullende leveranciersinformatie zodra de familiepagina inhoudelijk is gevalideerd.
LeveranciersinformatieDe productfamilie wordt hier getoond zodra er meerdere gekoppelde modellen beschikbaar zijn.
Hier komen verwijzingen naar de productfamiliepagina, relevante kennisartikelen en aanvullende bronnen die helpen bij de keuze van het juiste model.
Bronnen bekijkenHier worden projecten en referenties verzameld waarin dit productmodel of de bredere productfamilie in een vergelijkbare context wordt toegepast.
Projecten bekijkenBij elk productmodel verzamelen we de productfiches, technische tekeningen, installatie- of montagebestanden en CAD-tekeningen op een vaste plaats.
Sommige documenten zullen in een volgende fase rechtstreeks beschikbaar worden voor download. Deze functionaliteit is voorlopig nog in ontwikkeling.
Design ashtray Sócrates Cenicero 40® acid-etched
Design ashtray Sócrates Cenicero 40® polished
Design ashtray Sócrates Cenicero 70® acid-etched
Design ashtray Sócrates Cenicero 70® polished
Design waste bin Daciano 60L ®
Design waste bin Fontana® without lid
Design waste bin Maya Bin 60L ®
Design waste bin Maya Bin 80L ®
Design waste bin Morella Bin 50L ®
Design waste bin Morella Bin Cenicero ®
Design waste bin Net Paperela 40L ®
Design waste bin Roc 70L Paperela ®

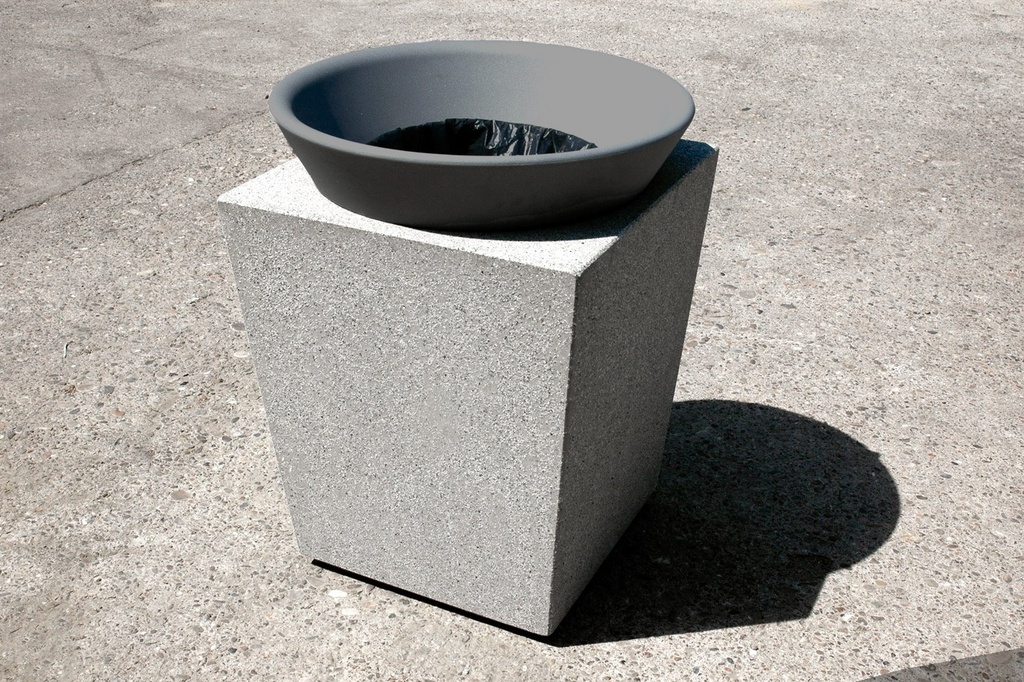

The Paper-ina litter bin stands out with its unique combination of cubic and conical shapes, and the use of concrete and plastic. This design plays with volumetric proportions and materiality, making it both functional and aesthetically pleasing for public spaces. Originally designed for the El Masnou promenade, the Paper-ina is a versatile choice for modern urban projects.
The base of the Paper-ina is made of reinforced concrete, ensuring stability and resistance to weather. The conical lid, crafted from high-density polyethylene (HDPE), offers a user-friendly and low-maintenance solution. The waste bag is securely held by a stainless steel ring with a cable, eliminating the need for additional mechanisms. Available in various colors, including yellow, green, blue, and orange, the Paper-ina seamlessly fits into different environments.
With a capacity of 70 liters, the Paper-ina provides ample space for busy urban locations such as parks, squares, and promenades. Thanks to its stable design and total weight of 350 kg, the litter bin withstands intensive use. A flame-retardant treatment is optionally available, making the Paper-ina particularly suitable for areas with increased safety requirements.
The Paper-ina is designed for easy installation on paved surfaces. Installation is carried out using four M16 x 140 mm screws, securely anchored in resin-filled holes. This makes the product suitable for both temporary and permanent applications in public spaces, from recreational areas to transport hubs.
2 verankeringsbouten M16 x 140

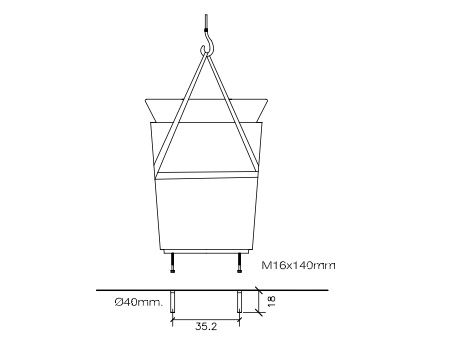

The Paper-ina litter bin is installed using four M16 x 140 mm screws. For secure placement, it is recommended to drill holes with a diameter of 40 mm and a depth of 180 mm into the pavement. These are then filled with resin or mortar, and the screws are tightened. The base of the bin can be sealed around the edges after installation for a clean finish and added stability.
The user-friendly design ensures easy maintenance. The conical HDPE lid can be quickly removed, providing straightforward access to the waste bag. The stainless steel ring holds the bag securely in place, and the cable mechanism ensures safety even in high-traffic areas. This minimizes maintenance efforts and enhances waste management efficiency.
The Paper-ina is both functional and aesthetically customizable. With various available colors, the litter bin can be tailored to match the theme of specific locations such as city parks, shopping centers, or recreational areas. The durable design ensures long-term use, while the versatile anchoring system guarantees secure placement on any surface.
