Design element Portic 160®
Design: Escofet_Lab - Dimensions: 160 x 40 x 45(45) cm - Weight: 260kg. - Material: reinforced cast concrete with natural stone aggregates - Finish: acid-etched and waterproofed - Colour: Escofet standard colour chart - Installation: free-standing element or with optional anchoring.
| Brand: Escofet 1886 |
| Material type 1: Cast concrete |
| Finish: Acid-Etched |
| Anchorage: free standing - optional anchorage |
Timeless Design and Durability for Public Spaces

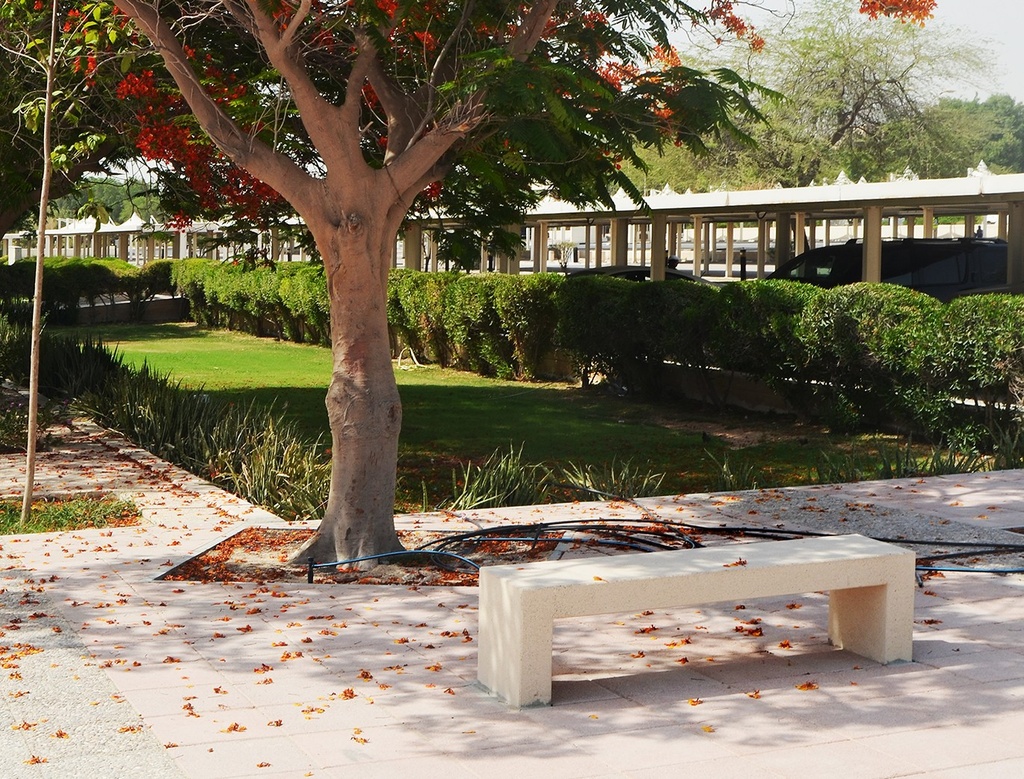

The Portic 160 is a versatile and robust bench specifically designed for public and semi-public spaces. Thanks to its minimalist design, the Portic 160 seamlessly integrates into urban, recreational, and green environments. With its clean lines and subtle aesthetics, this bench provides both functionality and a stylish addition to its surroundings.
Powerful Features and Versatility
The Portic 160 is available in a range of colors to blend perfectly with various settings. In addition to this model, the collection includes the longer Portic 200, with a length of 200 cm, and a version with a solid teak inlaid seat. All three models are also offered in an eco-friendly version, made from recycled materials such as Eco-Grey®, making them a sustainable choice for any project.
Durable and Built for Intensive Use
This bench is made of high-quality concrete with an etched and water-repellent finish, making it resistant to heavy use and extreme weather conditions. Measuring 160 x 40 x 45 cm and weighing 260 kg, the Portic 160 is both sturdy and easy to install. It can be installed freestanding or optionally anchored for extra stability, making it ideal for a variety of applications such as parks, squares, and promenade areas.
Cast concrete with natural stone aggregates - finish : acid-etched and waterproofed
2 stud bolts Din 931 M16 x 140 mm
Installation of the Portic 160 begins by placing the bench on a stable and level surface. Optionally, the bench can be anchored using two M16 x 140 mm screws that are secured through the recessed sleeves in the base. For this, holes with a diameter of 40 mm and a depth of 180 mm must be drilled into the pavement and filled with high-quality mortar or resin. The screws are then tightly fastened, and the base is caulked all around for a seamless finish. For freestanding installation, no anchoring is required, but it is recommended to level the bench carefully to ensure maximum stability.
